Exposure Prevention System (EPS-3)

The SOMNI EPS-3 Exposure Prevention System is a self-contained, three-station vacuum scavenging system designed to actively remove waste anesthetic gases (WAG) from the anesthesia work area, helping reduce operator exposure and improve workplace safety.

Key Features

• Self-contained 3-station flowmeter-controlled vacuum system
• Actively scavenges waste anesthetic gas (WAG)
• Integrated linear vacuum pump producing up to 45 LPM of negative flow
• Ideal for locations where active house vacuum is unavailable

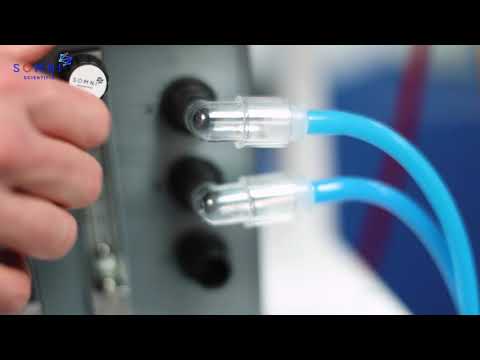

• Individual stopcocks on each scavenging port for independent flow control
• Ports can be turned off without changing flowmeter settings
• Automatic shut-off feature (WG-15001 model only) to conserve power and extend pump life

Included in the Package

• Four (4) six-foot vacuum lines with patient elbows
  • One (1) line with 15 mm × 15 mm ends
  • Two (2) lines with stopcocks and 15 mm × male/female connectors
  • One (1) line with stopcock and 15 mm × 15 mm ends
• Power cord
  (Not included with WG-15002 non-pump version)

System Configuration & Venting

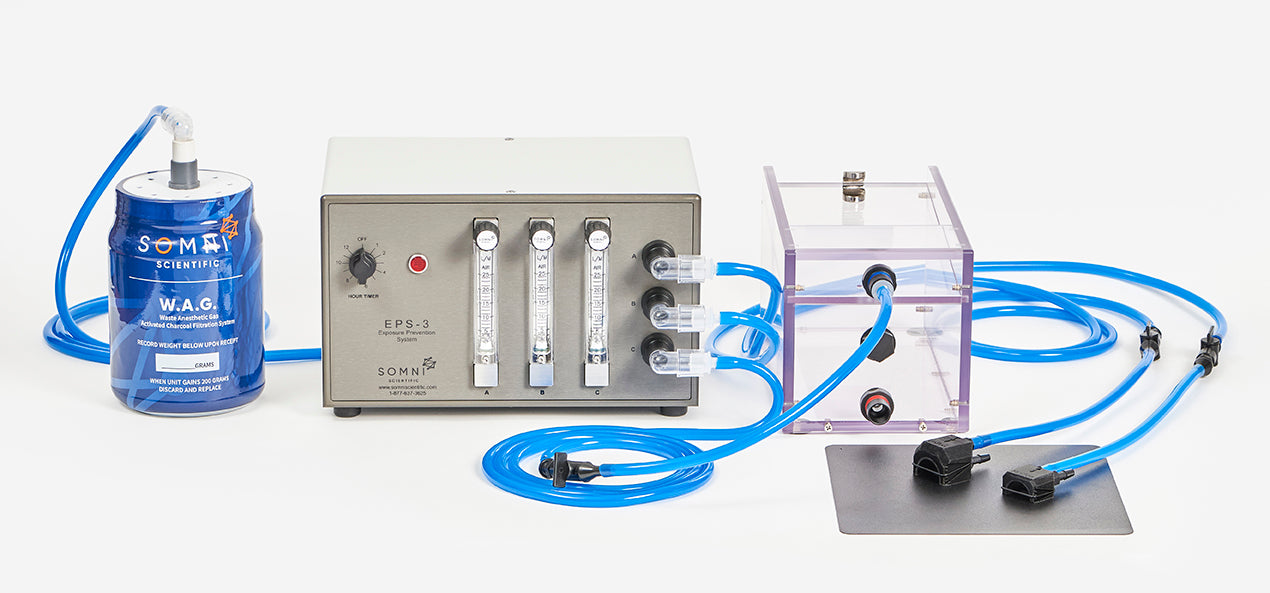

• Designed for evacuation to a SOMNI W.A.G. Filter (WG-15003)
• Compatible with any non-recirculating hood or high-volume vent system

Available Models

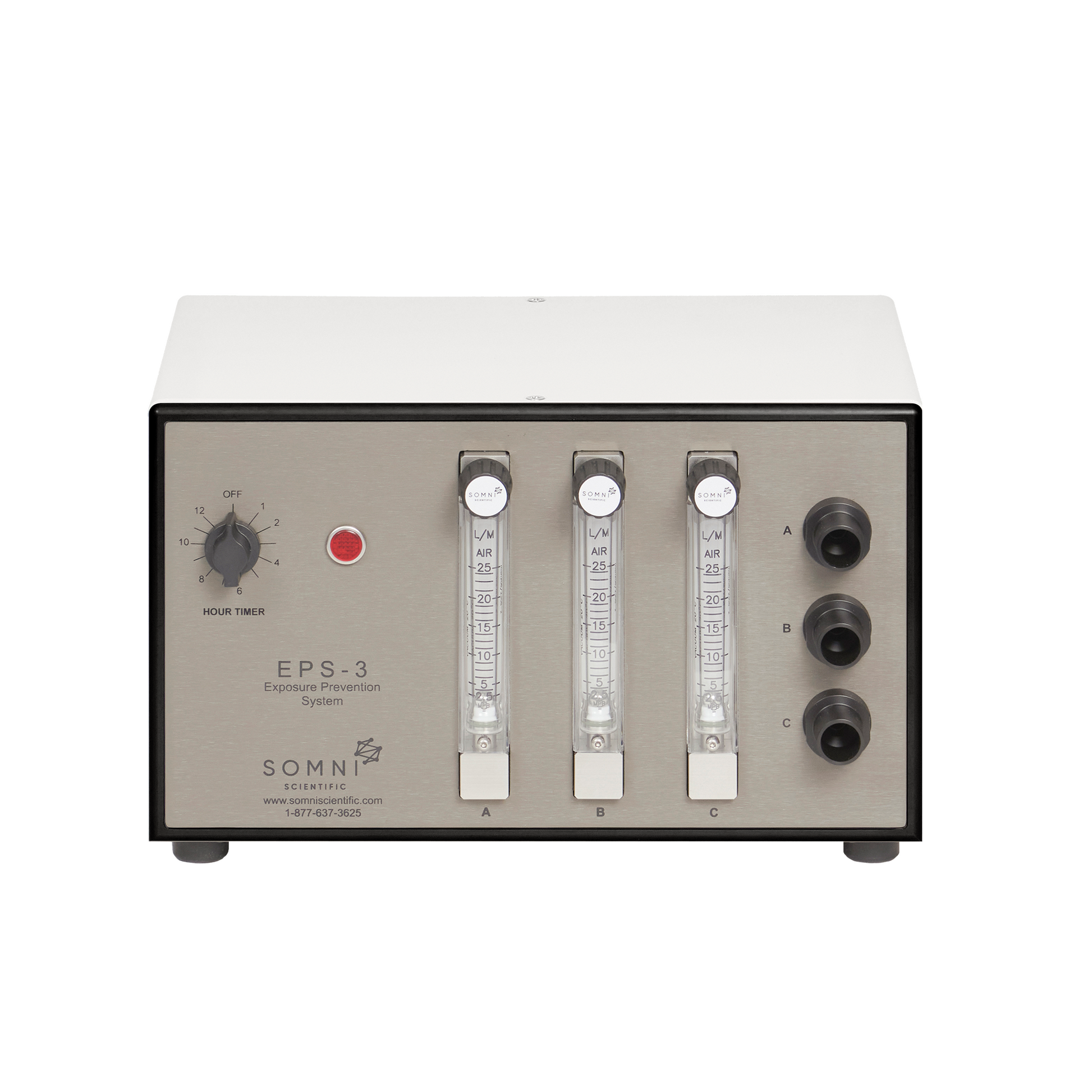

• Pump Version
  Includes integrated vacuum pump and automatic shut-off functionality.

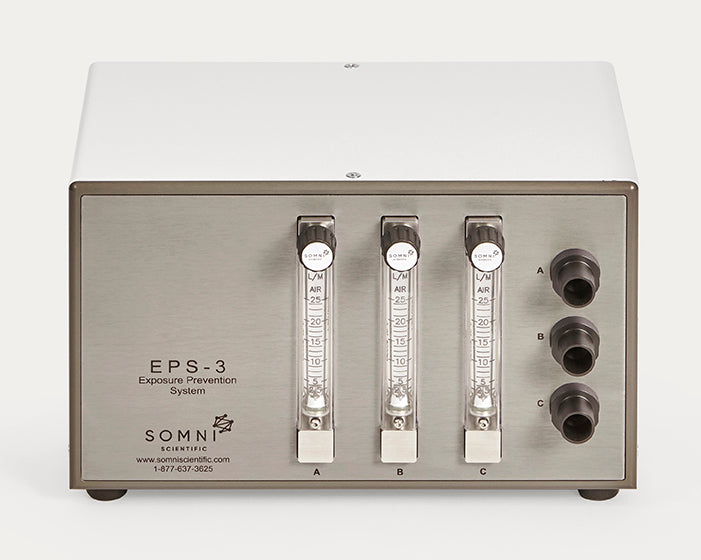

• Non-Pump Version
  Designed for use with an existing in-house active vacuum system. Functions as an interface valve, allowing facilities to precisely attenuate vacuum levels to their required specifications.

Applications

• Veterinary anesthesia workstations
• Research laboratories
• Mobile or temporary anesthesia setups
• Facilities without centralized vacuum infrastructure
